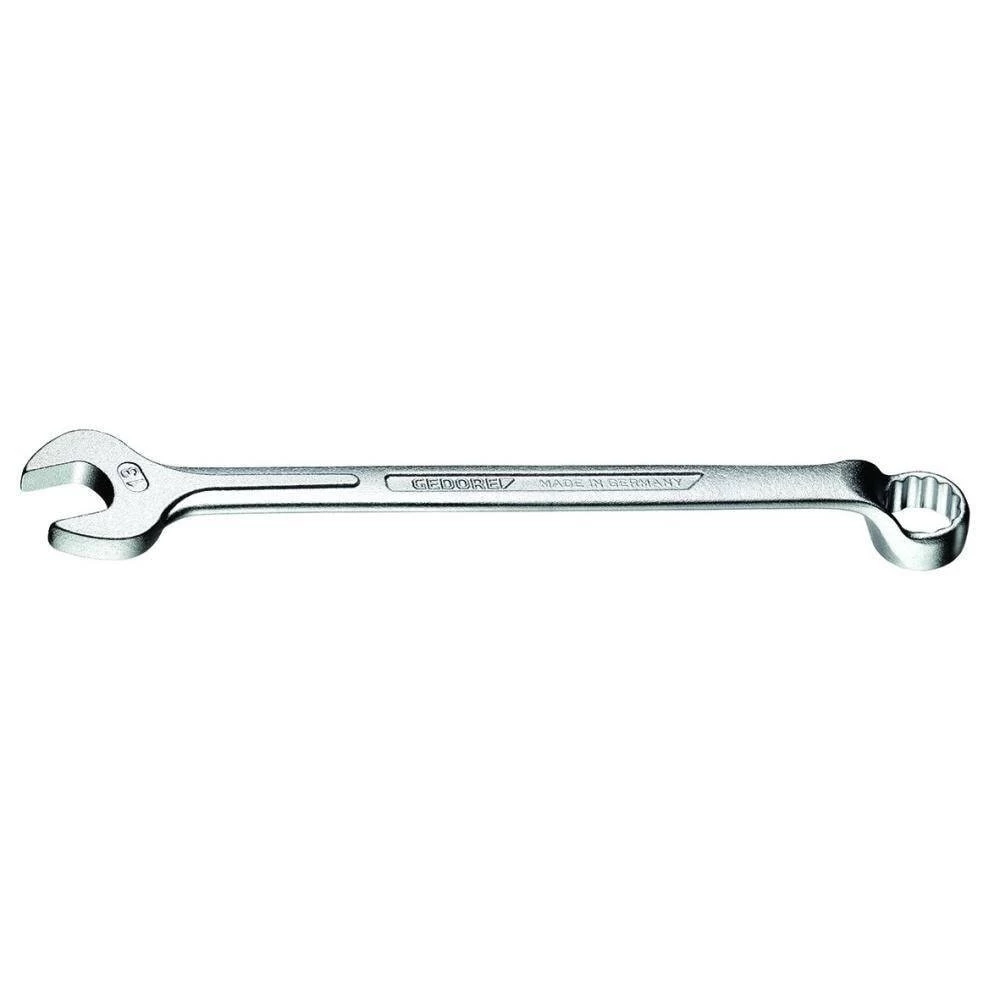

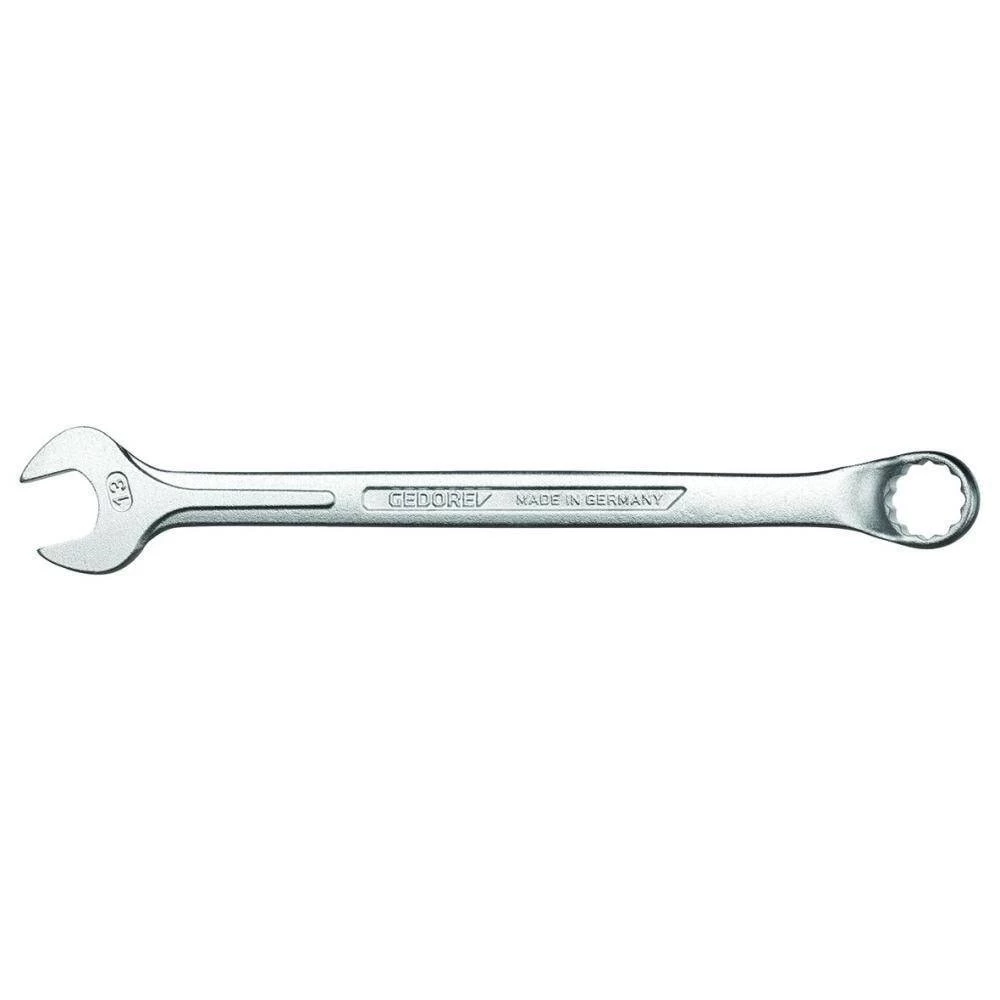

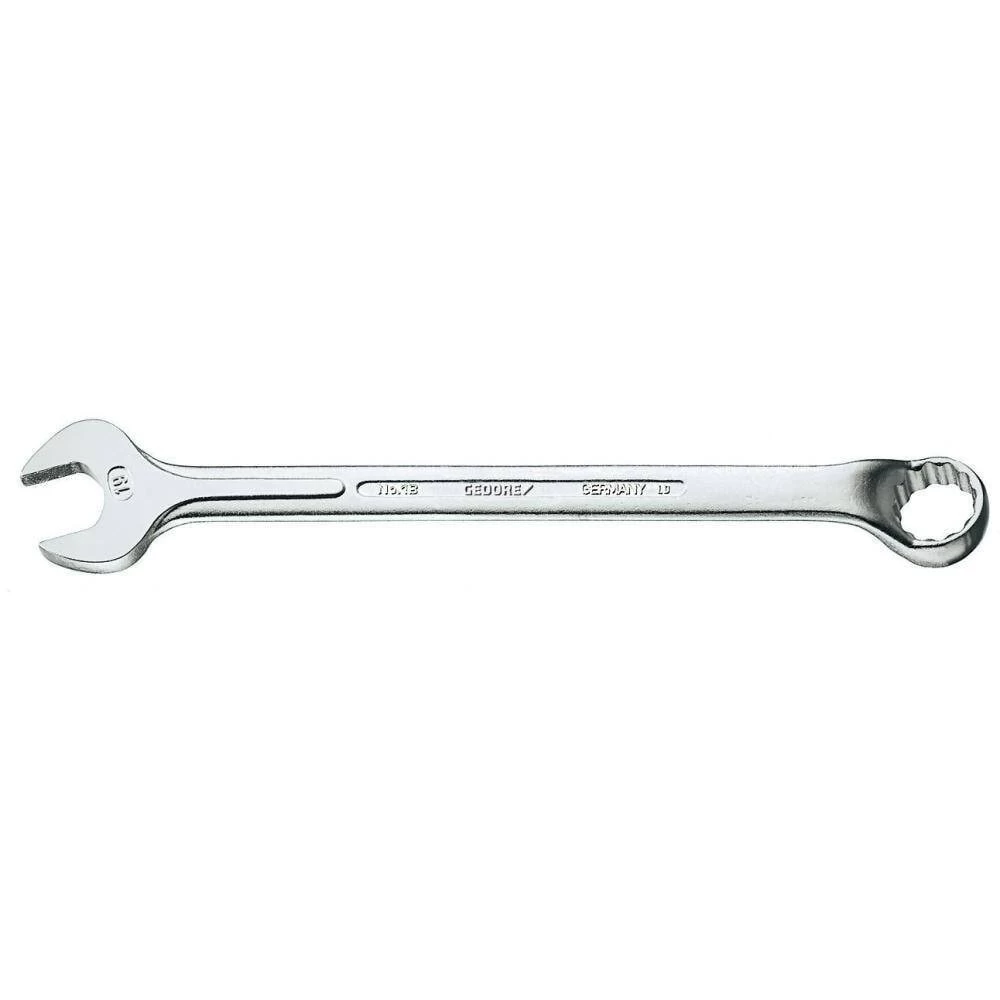

Gedore 1B Metric Combination Spanner Wrench 23mm

Description

• Acc. to DIN 3113, Form A, ISO 3318, ISO 7738
• Sizes 5 and 5.5 mm with hexagon ring, up from size 6 mm with UD profile
• Chrome-vanadium steel 31CrV3, chrome-plated
• Carefully forged and professionally machined

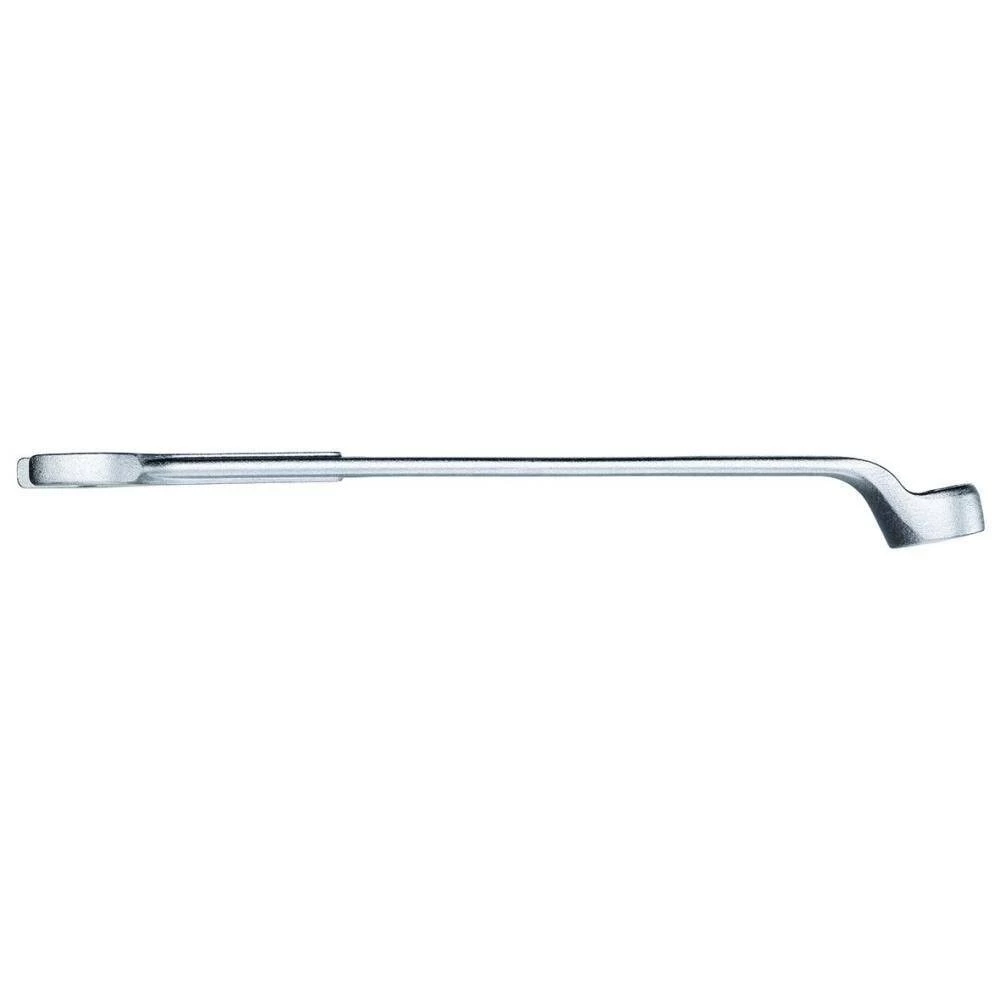

• Ring: 10° offset from shaft, with UD profile for gentle transmission of force
• Overloading indicated by deformation
• The offset ring ensures a better grip on deep-seated or inset nuts or bolts
• Top-grade industrial quality for the hardest of continuous use

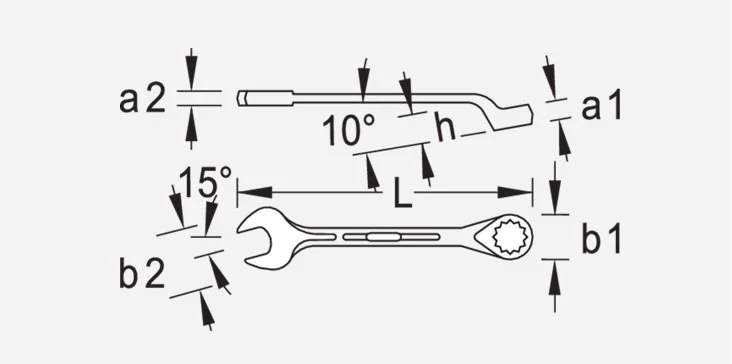

• Length: 305mm.
• A1: 15.5mm.
• A2: 9.3mm.
• B1: 33.5mm.
• B2: 49.8mm
• H: 28mm.
• Weight: 0.350kg.
